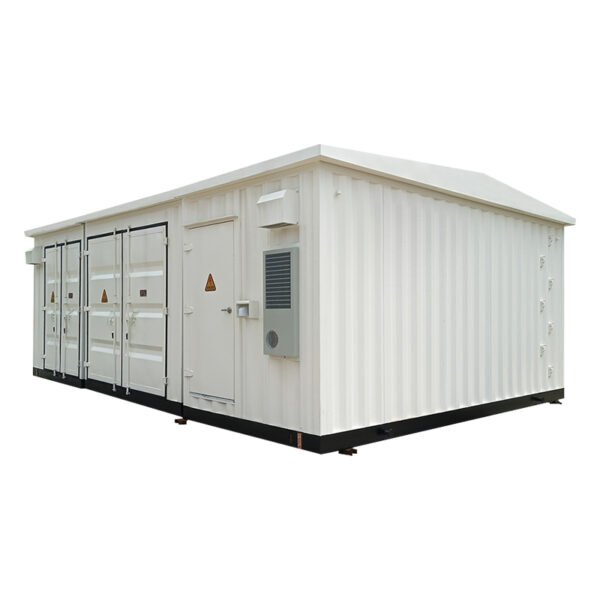

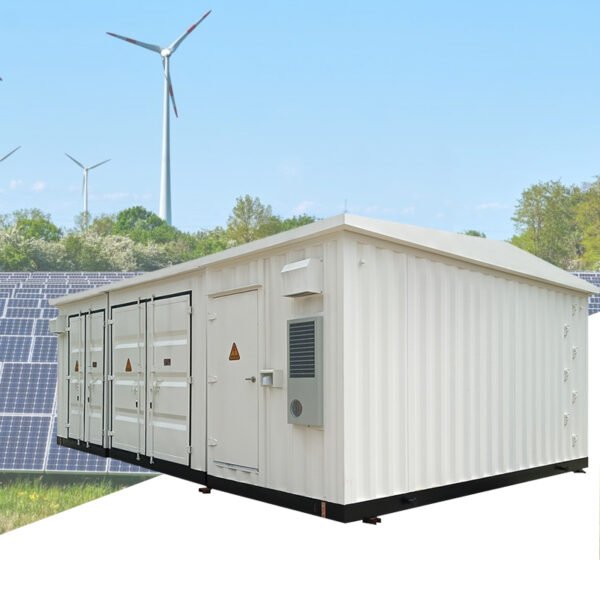

The YZC Photovoltaic Prefabricated Substation is a large box-type substation that integrates many advantages of box-type substations, such as “prefabrication”. The modular combination of the structure and equipment of the photovoltaic prefabricated cabin meets the special needs of photovoltaic power generation and power control. In terms of cost and operation and maintenance, it is obviously better than civil substations, and is a good choice for the current photovoltaic industry.
Overviews
Providing fully modularized assembled substation solutions, reducing floor space by 30% and shortening system design, installation and commissioning cycles by 70%; using all-metal prefabricated cabins and configuring intelligent environmental control systems, it can be applied to complex climate and geographical environments such as high temperature, high humidity, and dust; supporting eCloud energy cloud platform access, providing remote health diagnosis, fault analysis, maintenance guidance and other functions, realizing unattended substations and full life cycle management of equipment; all substation equipment can be customized by our company according to actual needs, with reliable operation and quality assurance.
Product Features:
Difference of Prefabricated Cabin Substation and Conventional Outdoor Substation:
| Item | Conventional Outdoor Substation | Prefabricated Cabin Substation |
| Floor Space | About 3000 square meters | Approx. 2000 square meters |
| Period of Construction | About 3 to 4 months | The whole station is pre-assembled as a whole, and all equipment isprefabricated by the factory.On-site installation can be, the constructiorperiod is short, 1~2 months |
| Quantity of Cable | The device is distributed, and the amount of primary and secondary cables is large | The equipment is highly integrated, the electrical distance is shortened, and the cable can be saved by about 30% |
| Environmental Requirement | High environmental requirements, wind sand, condensation andother harsh environment areas, great harm to the equipment | All metal cabin design, lP54 protection level, equipped with perfectHVAC system, can prevent sand, condensation,improve equipmentreliability |
| Construction and Management Costs | Many buildings, high construction costs; The equipment is providedby different manufacturers, and the coordination and management cost is high |
Prefabricated design, the whole station cancels the building, theconstruction cost is low; All equipment provided by the company, andresponsible for all installation and debugging work, low management costs |
| 0peration and Maintenance Cost | Open design,affected by the environment, high operation andmaintenance costs | Closed design, basically not affected by external conditions such as the environment,low operation and maintenance costs |
