Overview:

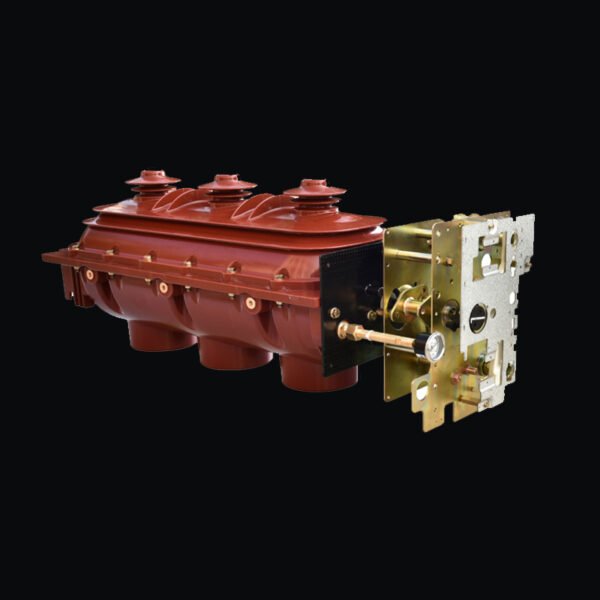

The FLN36 SF6 gas-insulated load break switch is a dual-break rotary switch that utilizes sulfur hexafluoride gas as the insulating and arc-extinguishing medium, designed for 7.2-24kV XGN15-12 RMU distribution systems. Each load break switch is filled with SF6 gas at a pressure of 0.4 bar, with the gas permanently sealed inside.
Advantages:
Baisc Parameter:
| Switch Type | FLN36 Switch | |
| Rated voltage | Ur [kv] | 7.2/12/24 |
| Rated insulation voltage | Us [kV] | 7.2112124 |
| Withstand voltage | Ud(1min)[kV] | 30/42/65(common value)34/48/79 (across the isolating distance) |
| Impulse withstand voltage | Up [kV] | 60/75/125(common value)70/85/145(across the isolating distance) |
| Raged frequency | Fr [HZ] | 50/60 |
| Rated current | Ir [A] | 630 |
| Rated short-time withstand current (3s) | [KA] | 25 |
| Rated peak withstand current | [KA] | 63 |
| Rated short-time current duration | [s] | 3 |
| Auxiliary circuit power frequency withstand voltage (1min) |
[V] | 2000 |
| Rated active load breaking current | [A] | 630 |
| Rated closed circuit breaking current | [A] | 630 |
| No-load transformer capacity | [KAV] | 1250 |
| Cable charging current | [A] | 10 |
| SF6 gas rated inflation pressure 20 “Cgauge pressure) |
[MPA] | 0.045+0.005 |
| SF6 gas yearly leakage rate | [per year] | ≤10% |
| Vechanical endurance (earthing) | [cycles] | 2,000 |
| Different period of three-phase closing | [ms] | ≤5 |
| Mechanical endurance(switch) | [cycles] | 5,000 |
