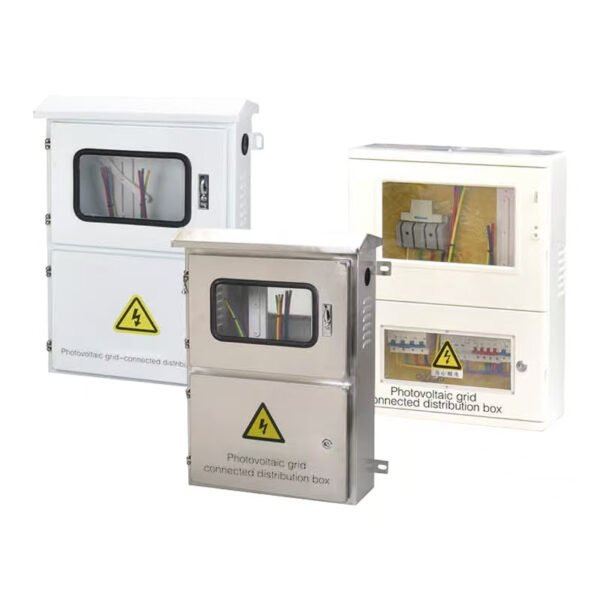

Overview:
This product is primarily used in residential photovoltaic (PV) distributed grid-connected power generation systems and small commercial PV power generation systems. It is installed between the grid-tied inverter and the power grid, offering a range of protections including anti-islanding protection, under-voltage and over-voltage detection, automatic closing upon voltage restoration, tripping upon voltage loss, grid low-voltage and over-voltage protection, lightning protection for input, system overcurrent protection, and grid isolation. Additionally, it features accurate energy metering, transmission, and intelligent operation control, making it an essential component in household grid-tied power generation systems. The product is certified according to industry standards, including CCC certification and CE certification.
Main Features:
| Product model | Single-phase | Three-phase |
| Installed power | 3KW-20kW | 3KW-200KW |
| Inverterinput channels | 1way /2 way/3 way /4 way (the above recommended Combiner Box) | |
| Number of grid-connected output channels | 1 way | |
| Grid-connection requirement | Single phase/three phase grid connection | |
| Grid-connected voltage | AC:220 AC:380 | |
| Switching capacity | 20A-100A | 32A-400A |
| Protection function | ||
| Short circuit protection | Yes | |
| Overload protection | Yes | |
| Lightning protection | Yes (nominal current: In: 20KA, Imax: 40KA, Up<4kV) | |
| Isolation protection (visible breakpoints) | Yes (knife brake/hand pull disconnecting switch) | |
| Over and undervoltage protection | Yes | |
| Automatic reclosing | Yes | |
| Grid-connected switch | ||
| Self-resetting over-voltage and under-voltage protector (optional) 40A~125A | 1. When the grid is powered off or the bias voltage is >20%, it will automatically disconnect (internal disconnection); | |
| 2. When the grid returns to normal, it will automatically close (internal connection); | ||
| Photovoltaic small reclosing circuit breaker (optional) 20A~100A | 1. When the grid is powered off or the bias voltage is >20%, the circuit breaker will automatically open (operating handle will be activated); | |
| 2. When the grid returns to normal, the circuit breaker will automatically close (operating handle will be activated); | ||
| 3. Manual operation and automatic operation can be switched; | ||
| 4. Check if there is voltage and close the circuit breaker | ||
|
Molded case recloser (optional) 40A~400A |
1. When the grid is powered off or the bias voltage is >20%, it will automatically trip (delayed trip time 0~10S adjustable); | |
| 2. When the grid returns to normal, it will automatically close; | ||
| 3. Manual operation and automatic operation can be switched; | ||
| 4. Phase loss protection, zero break protection | ||
| 5. Close the circuit breaker after voltage detection | ||
| Environmental applicability | ||
| Temperature and humidity | Operating, temperature: -25 to +60’c Storage temperature: -40 to +70°C
Humidity: 0-90% no condensatiorcream; Non-corrosive gas sites (if any, please specify) |
|
| Service altitude | <3000M | |
| Salt spray resistance | Standard salt spray test 336 hours | |
| Conventional parameter | ||
| Box material | Stainless steel, cold rolled plate spray, stainless steel spray, glass fiber reinforced plastic (SMC),transparent plastic box | |
| Class of protection | OutdoorIP45,IP55, andIP65 | |
| Boxtype | Double door with gauge (distribution bin, metering bin) Single door without metering bin (optional) | |
| Installation mode | wall-mounted | |
| Boxsize(L*W*H) | On-demand customization | |
