DSY-CV-12/T630-20 Environmentally friendly gas insulated ring main switchgear

Overview:

Since the 1950s, the development of medium-voltage switchgear has gone through the stages of open type, box type, metal enclosed type, etc. There is no problem in meeting the functional use requirements of the equipment, and the products have long been serialized and fully covered. Small size, maintenance-free, highly modular, safe and reliable environmentally friendly gas-insulated ring network switchgear has developed rapidly. It can realize remote monitoring, control and management of the power system distribution network, realize the needs of power grid optimization, power safety, power management, energy saving and consumption reduction: the system can also be widely used in intelligent power distribution fields such as transportation, factories, hospitals, schools, buildings, residential areas and commercial office buildings.

DSY-CV-12/T630-20 environmentally friendly gas-insulated ring network switchgear fully introduces advanced production equipment and manufacturing technology to realize localized production, greatly reduce manufacturing costs, shorten delivery cycles, and is well received by users after its launch.

1. Secondary control box 2. Microcomputer integrated protection device 3. Live indicator The live indicator shows whether the bushing is live. The three sockets below the indicator can be used for secondary phase checking. 4. Energy storage operation hole Use the operating handle to rotate the energy storage mechanism shaft. Make the main switch operating mechanism store energy 5. Energy storage operation hole padlock device The padlock plate linked to the padlock device blocks the energy storage operation hole. Only by pulling the padlock device can the operating handle be inserted into the energy storage operation hole. When not in operation, a padlock can be configured to prevent unauthorized personnel from misoperating. 6. Counter indication 7. Isolating switch operating hole and grounding switch operating hole padlock device The padlock plate linked to the padlock device blocks the grounding switch operating hole or the isolating operating hole. Only by pulling the padlock device can the operating handle be inserted into the grounding switch operating hole or the isolating switch operating hole. When not in operation, a padlock can be configured to prevent unauthorized personnel from misoperating. 8. Earthing switch operation hole 9. Earthing electromagnetic lock 10. Door handle 11. Cable connection room The cable connection room is equipped with a bushing that meets the DIN47636 standard, and the incoming and outgoing cables are connected through a fully insulated and fully sealed detachable connector (cable connector) 12. Fault indicator 13. Main switch energy storage indication 14. Main switch closing button 15. Main switch opening button 16. Isolating switch operation hole 17. Fuse tripping indication 18. Observation window lighting button 19. Observation window

Product Features

• Complex and integrated products
  The inflatable shell of the switchgear is made of high-quality 2.5mm thick stainless steel plate through laser welding, which ensures the airtight reliability of the gas box, high mechanical strength, good corrosion resistance, and the protection level of the inflatable shell reaches IP67: the gas box is equipped with an explosion-proof diaphragm, which can effectively prevent damage to people and equipment caused by excessive air pressure: all conductive parts are enclosed in the gas box, which can not only avoid the influence of external environmental factors, but also improve the operating reliability, making it maintenance-free (or less maintenance) and meeting the requirements of miniaturization.
  The main circuit adopts a combination of a three-position switch (connection + isolation + grounding) and a vacuum interrupter. This structure is the most mature configuration method at present, and is particularly suitable for the current power grid operation and maintenance needs.
• Environmental and pollution-free
  The insulating medium of the DSY-CV-12/T630-20 environmentally friendly gas-insulated ring network switchgear is zero-grade dry air (purchased from outside) or 99.99% pure N2 in accordance with GB/T8979-2008. Gas leakage will not cause any impact on the external environment, and no recycling treatment is required.
• Perfect mechanical interlocking
  The operation panel of DSY-CV-12/T630-20 environmentally friendly gas-insulated ring network switchgear has perfect five-protection mechanical interlocking function, and all interlocking functions are configured internally. Please follow the operation instructions for operation, which is very convenient to use.
• Flexible expansion design
  DSY-CV-12/T630-20 environmentally friendly gas-insulated ring network switchgear is modularly designed. Various modules can be connected through dedicated busbar connectors. A variety of unit combinations are achieved to maximize meet the complex and diverse power distribution design schemes in various parts of China.

Working Environment

• Altitude: ≤ 2000m (If the installation altitude exceeds 2000m, please contact Dongshengyuan Company).
• Ambient temperature: Maximum: 40°C, Minimum: -40°C; the average temperature within 24 hours should not exceed 35°C.
• Humidity: The 24-hour average relative humidity should not exceed 95%, and the monthly average relative humidity should not exceed 90%.
• Installation environment: The surrounding air should be free from explosive and corrosive gases, and the installation site should not experience severe vibrations or impacts.
• Seismic resistance: Level 8.

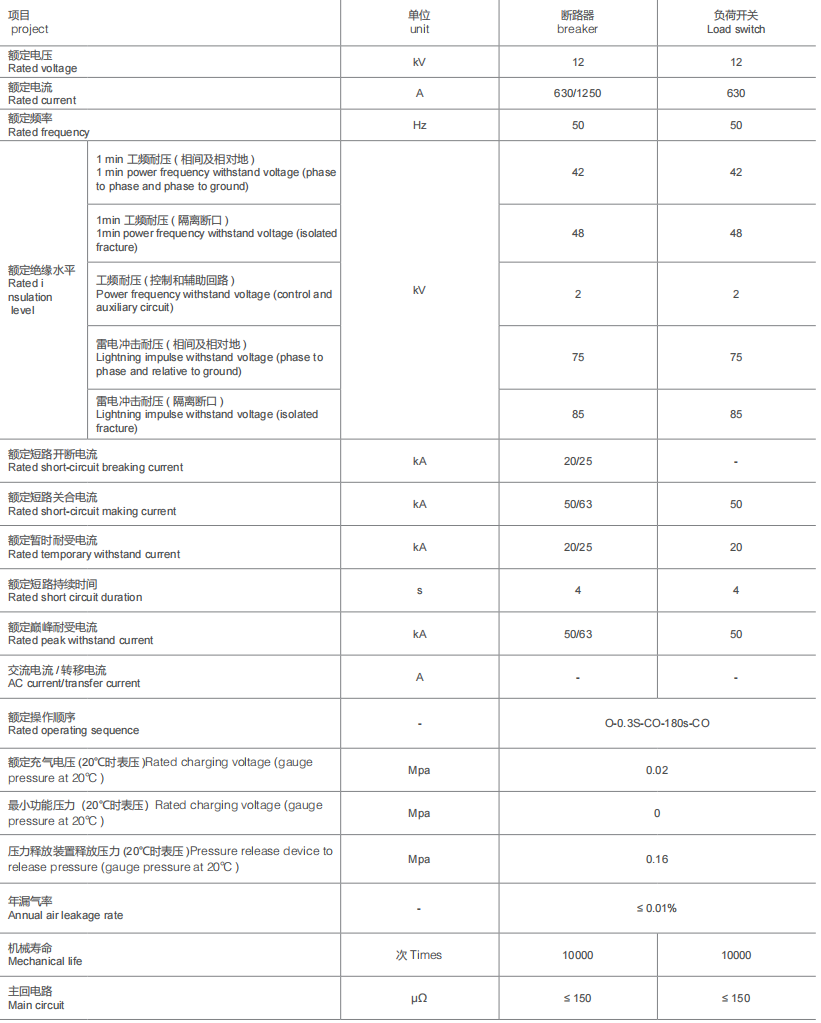

Tecnical Parameter

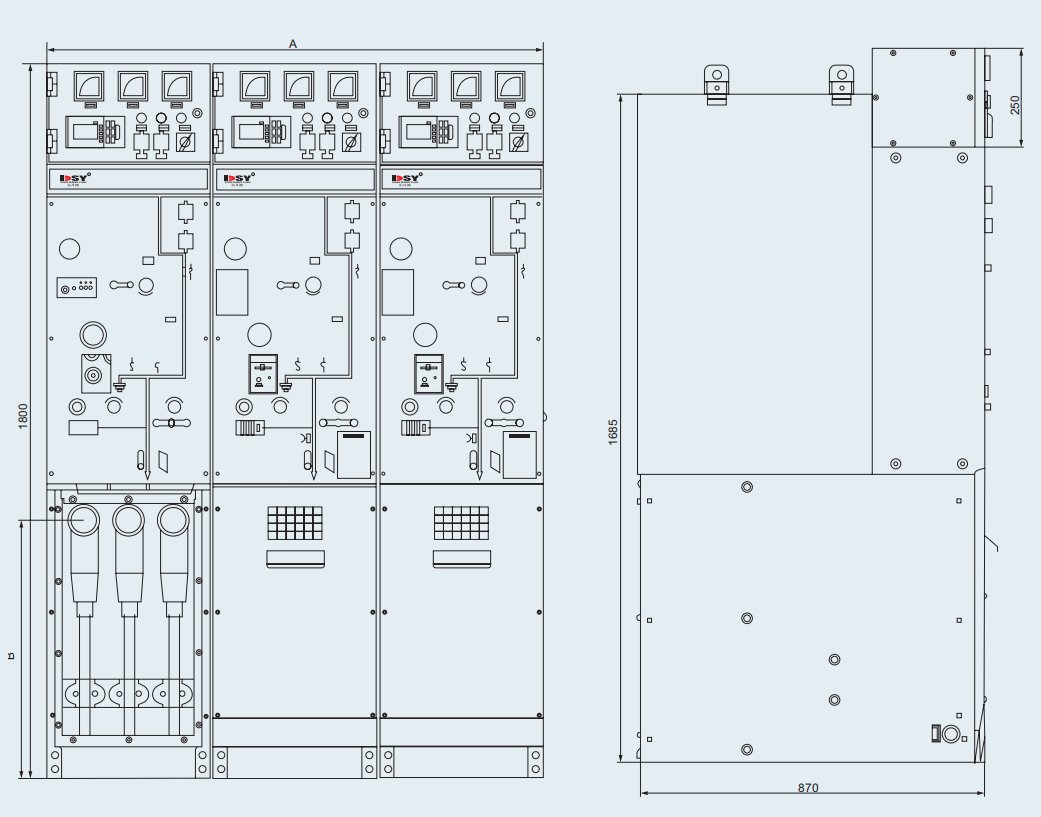

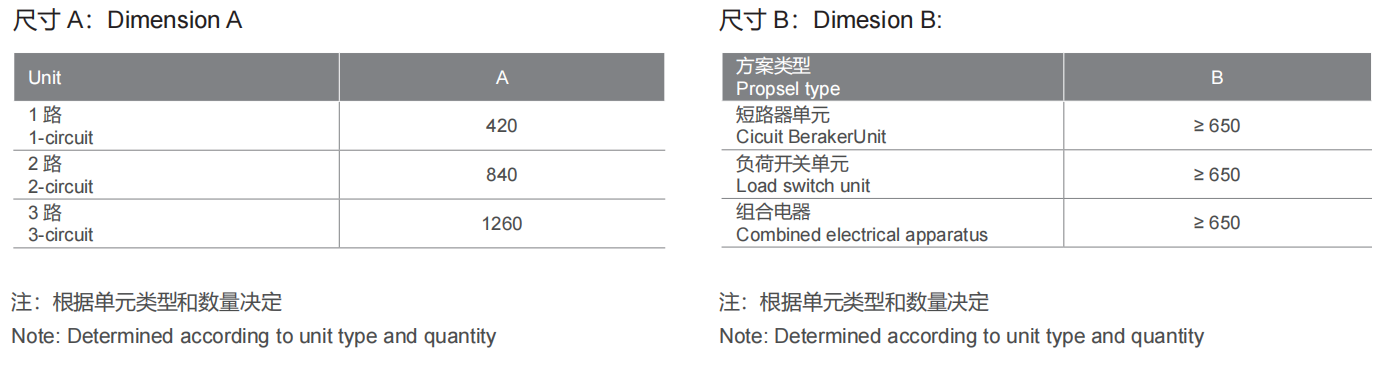

Shape and related dimensions：

Basic Switchgear Module Introduction

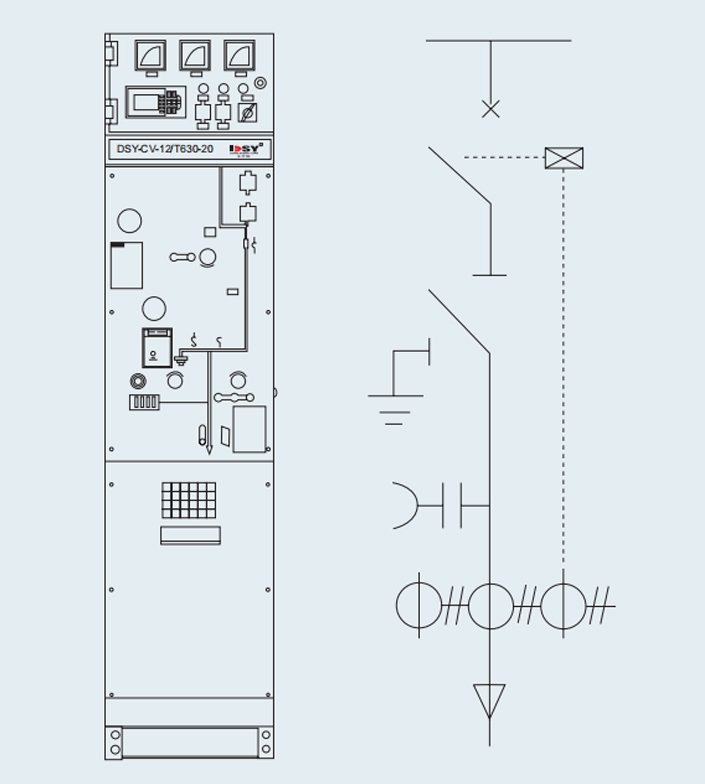

Vacuum Circuit Breaker Unit

Standard configuration and features: 630A/1250A busbar vacuum circuit breaker Electric operating mechanism for vacuum switch Three-position disconnector Manual operating mechanism for three-position disconnector Position indicator for vacuum switch and three-position disconnector Cable connection bushing Capacitive voltage indicator showing bushing live Barometer Padlocking device Switchgear body Wiring busbar Operating handle Current transformer (special for protection) Digital relay protection device Optional configuration and features: Short circuit and ground fault indicator Detachable connector (cable connector) Lightning arrester Live/grounded locking device for incoming line Key mechanical interlocking device Ring current transformer and meter

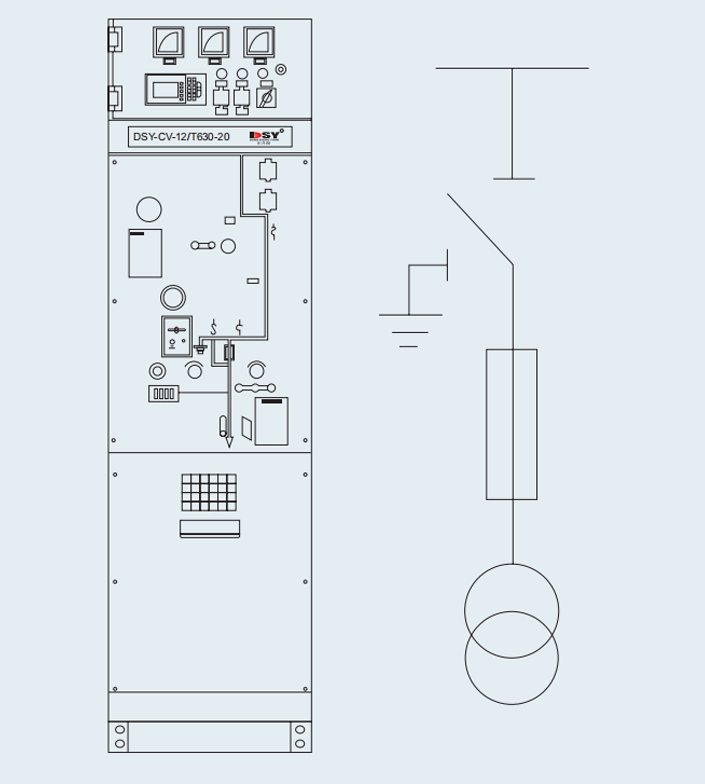

Switchgear with Load Switch

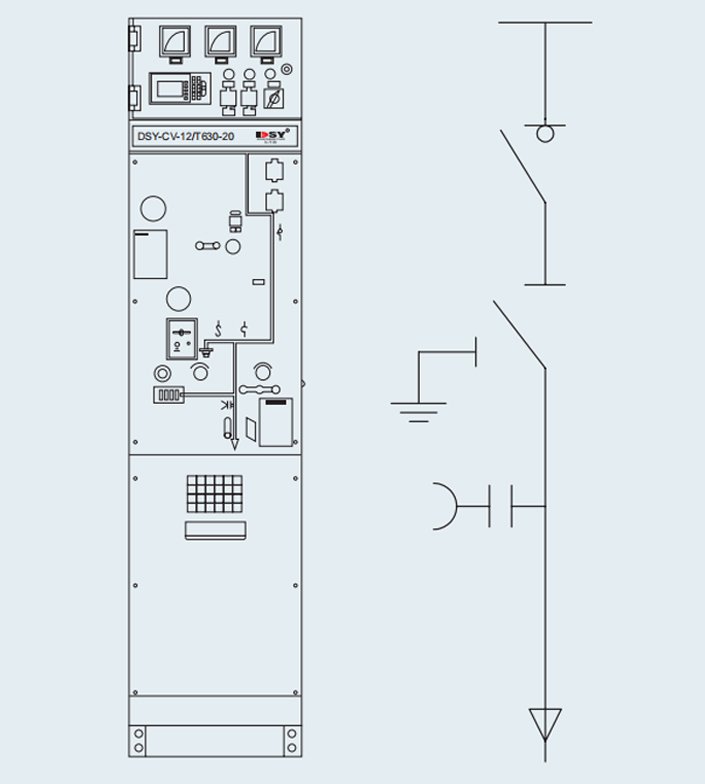

Standard configuration and features 630A busbar Vacuum load switch Manual operating mechanism of vacuum load switch Three-position disconnector Manual operating mechanism of three-position disconnector Position indicator of three-position disconnector of load switch Cable wiring bushing Capacitive voltage indicator showing bushing voltage Voltage gauge Padlocking device Grounding busbar of switchgear Operating handleOptional configuration and features: Electric operating mechanism of vacuum load Separable connector (cable connector) Lightning arrester Live/grounding locking device for incoming line Key mechanism and locking device Toroidal current transformer

Standard configuration and features: 630 busbar Manual operating mechanism for vacuum load switch Three-position disconnector/fuse head and end grounding switch Manual operating mechanism for three-position disconnector/fuse head grounding switch Load switch and grounding switch position indicator Cable connection pipe Display sleeve energized capacitive voltage indicator Barometer Padlocking device Switchgear body Grounding busbar Operating handle Fuse barrel Optional configuration and features: Vacuum load switch operating mechanism Short circuit and ground fault indicator Detachable connector (cable connector) Key mechanical interlocking device High voltage current limiting fuse Ring current transformer and meter
