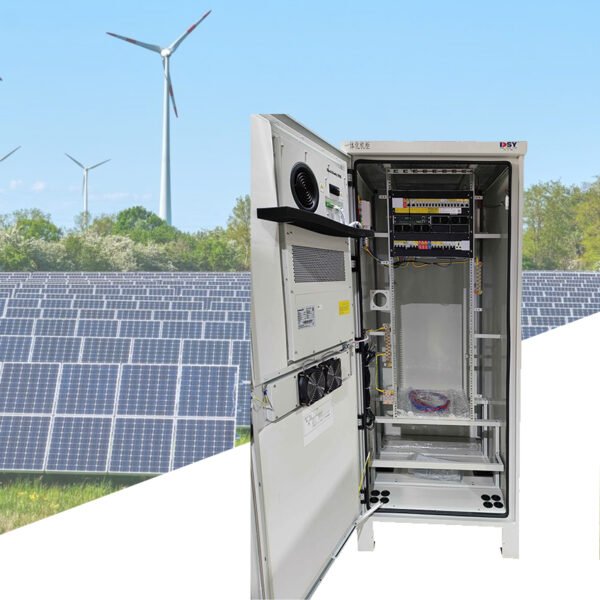

This a smart switchgear system that integrates AC input power distribution, lightning protection unit, high-frequency switch rectifier, battery pack, DC output intelligent backup power distribution unit, FSU and outdoor integrated chassis.
The system is configured with 1-2 hot-swappable rectifier modules; the normal working range of the rectifier module is as wide as 90-290Vac. The system monitoring module has battery management and power system monitoring functions.
The appropriate configuration of sensors can realize environmental monitoring, and provide multiple groups of backup monitoring quantities. It can provide RS485 communication interface, which is convenient for remote monitoring and unattended operation. At the same time, the system can also be configured with a set of 100AH lithium iron phosphate batteries to form a 5G smart micro-integrated cabinet equipment.
Principle of Product Characteristics:
The system is powered by single-phase mains electricity through two interlocked AC input circuit breakers to supply power to two rectifier modules;
The module output supplies power to the monitor and dynamic ring FSU, and charges the iron-lithium battery through the battery input circuit breaker. The system operation is managed by the monitor, which reads the module AC information through CAN communication.
In addition, the north port of the monitor communicates with the FSU through RS485, provides the FSU with the module input voltage and current value, and measures the total current and voltage value of the DC output load transmitted; the FSU is connected to the tower headquarters operation and maintenance management platform through 4G wireless communication or wired communication networking.
The output of the rectifier module is divided into two paths after being connected. The first path can control the power on or off of the load end of DC output 1/2/3/4/5/6 and the power on or off of the negative end of user 1 on DC output 7 and the power on or off of the negative end of user 2 on DC output 8 through 8 intelligent circuit breakers; the intelligent circuit breaker can realize the electricity metering and power on and off functions of user branches and households; the second path is output to the negative end of the battery through the shunt and battery input circuit breaker.
Application:
| Maximum Output Power | Input Voltage Range | Output Voltage | Output Current | Rectifier |
| 5000W or 9000W | 176~290Vac | 56.5V | 100A or 150A | RM4850*2 or RM4875*2 |
| System Configuration | ||||
| Dc Output | 63/2P x 2, with mechanical interlock, Class B AC surge arrester *l | |||
| Battery Input | MCB: 125A/1P*2 | |||
| Rotating Ring | Dynamicloop monitoring FSU module *l | |||
| ODF | 12-core optical fiber fusion disk, 12-port cable-mounted $C adapter, plug-in passive wave division module *2 | |||
| Overall Dimension | 580H*420W*299D(mm) | |||
| Weight | 35kg | |||
| Installation Mode | Supportswallhanging/pole and floor mounting | |||
| Matching Battery | ||||
| Battery | Lithium iron phosphate battery 100AH/51.2VDC*1(16 strings) | |||
| Overall Dimension | 495*360*136(mm) | |||
| Weight | 43kg | |||
