Medium Voltage Switchgear Buyer’s Guide: Smart Selection Strategies
Professional insights to help B2B buyers choose efficient, safe, and compliant electric switchgear systems.
Introduction
For EPC contractors and procurement teams in power, mining, and utility sectors, choosing the right medium voltage (MV) switchgear is more than a technical spec—it impacts safety, reliability, and total cost of ownership. This no-fluff guide delivers structured, field-proven advice for evaluating switchgear options with confidence.
What Is Medium Voltage Switchgear?
Definition and Core Functions
Medium voltage switchgear operates within the 1kV to 36kV range. It integrates protection, control, and isolation to stabilize electrical networks across substations, plants, and grid nodes.
- Protection: Trips and isolates faulty lines to prevent system damage
- Isolation: Enables safe maintenance without halting full system operations
- Control: Directs and manages energy flow across zones
Typical Applications
- Electric utility substations
- Renewable energy (solar, wind)
- Petrochemical and mining facilities
- Urban rail systems and data centers
Major Types of Medium Voltage Switchgear

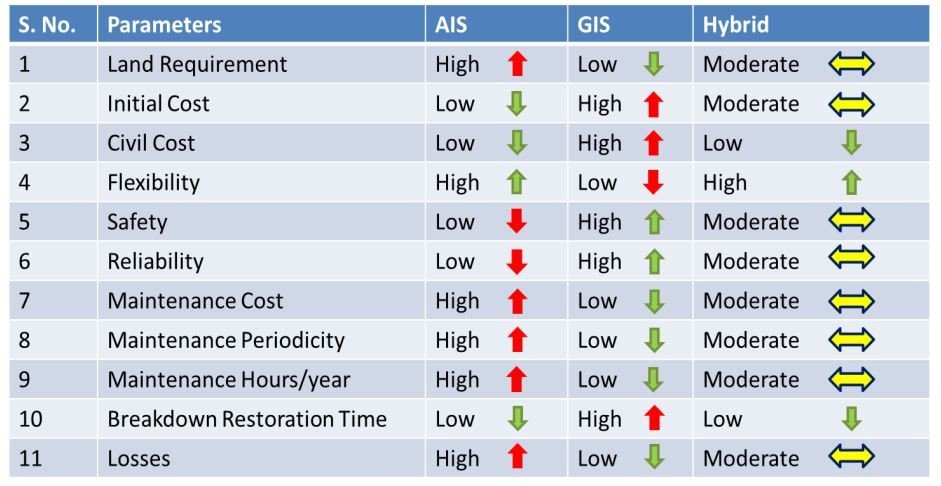

Compare AIS, GIS, and Hybrid Designs
- AIS: Air-insulated switchgear is cost-effective but needs more space.
- GIS: Gas-insulated switchgear is compact and better for harsh environments.
- Hybrid: Combines the advantages of AIS and GIS for retrofit or custom projects.
Other Design Variants
- Withdrawable vs Fixed Type: Withdrawable gear simplifies servicing; fixed reduces upfront cost.
- Metal-Clad vs Metal-Enclosed: Metal-clad offers better arc protection and isolation.
- Arc-Resistant Units: Adds safety for high-energy industrial applications.
| Type | Footprint | CapEx | Recommended Use |
|---|---|---|---|
| AIS | Large | Lower | Rural plants, light industry |
| GIS | Compact | Higher | Urban substations, offshore rigs |
| Hybrid | Medium | Moderate | Space-limited brownfields |
How to Choose the Right Switchgear
Step-by-Step Selection Strategy
- Define Load Parameters: Match voltage, current, and fault rating to your grid and transformer system.
- Assess Site Conditions: Consider humidity, corrosion, temperature, and altitude.
- Check Standards: Require compliance with IEC 62271, GB3906, ANSI C37 with full type-test certifications.
- Evaluate Lifecycle Cost: Compare initial cost vs. maintenance, reliability, and service support.
- Inspect Maintenance Features: Online diagnostics and modular design reduce downtime.
- Ask About Smart Capabilities: IoT integration supports remote monitoring and fault prediction.
Common Buyer Pitfalls to Avoid
- Underestimating the total cost of ownership
- Overlooking local compliance or utility acceptance
- Ignoring arc flash protection levels
- Choosing vendors lacking export or certification experience
Pro Tip: Always ask for third-party lab tests and real project references in your industry.
Medium Voltage Switchgear Brand Comparison
| Brand | Engineering Depth | Custom Design | Lead Time | Export Regions |
|---|---|---|---|---|
| ABB | ★★★★★ | Yes | 8-10 weeks | Global |
| Schneider | ★★★★★ | Yes | 6-9 weeks | Global |
| Eaton | ★★★★☆ | Limited | 8-12 weeks | Global |
| Dongshengyuan | ★★★★☆ | Yes | 4-6 weeks | Asia, MENA, LATAM |
| VCB Breaker | ★★★☆☆ | No | 10-14 weeks | Regional |
How to Vet a Medium Voltage Switchgear Supplier
- Ask for IEC/ANSI test certificates and audit records
- Check track record with industrial or utility projects
- Review the local after-sales network and engineering support
- Confirm the ability to offer full low/high voltage systems
Extra Tip: Choose electric switchgear partners with experience in engineering consultation, not just product resellers.
Conclusion
Reliable switchgear selection protects more than just your grid—it secures your people, your project timeline, and your operational efficiency. Invest in partners who understand your application, compliance needs, and long-term goals.
