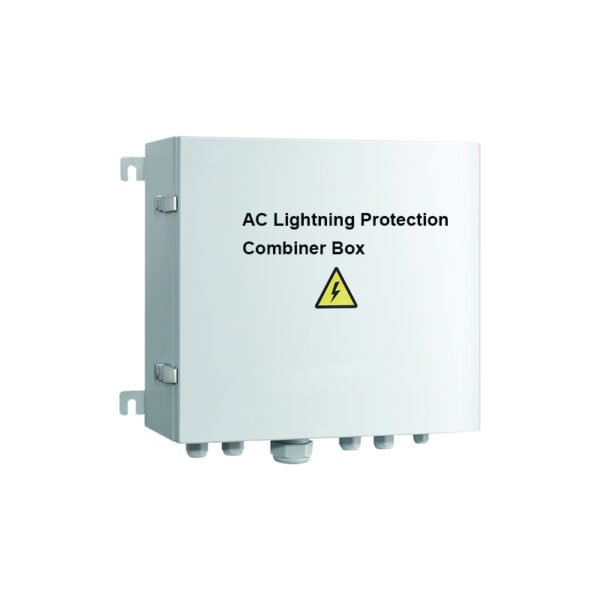

PV AC combiner box for Solar Panel

Overview:

This PV AC Combiner Box is mainly used for the confluence of string inverters in centralized photovoltaic grid-connected power generation systems. It is connected in series between string grid-connected inverters and grid-connected metering cabinets. The product has input lightning protection, system overcurrent protection and other protections. The application of this product reduces the long-distance transmission of large wires, reduces costs for users and improves system efficiency. The product has passed industry standard CCC certification, CE certification, IS09001 quality management system certification, etc.

Features:

All components are from well-known domestic and foreign brands, with certification from authoritative organizations and complete qualifications; the exposed live parts are protected by flame-retardant, anti-static, and high-temperature resistant transparent covers; the incoming and outgoing circuit breakers are installed vertically and laid flat on the box, with one-to-one wiring to avoid wrong wiring; the main line is connected with copper busbars, and the surface of the copper busbar is tinned for corrosion and oxidation prevention; each phase line is marked with the industry’s common color, which is clear and eye-catching; an intelligent monitoring system (system voltage, main line current, switch status, lightning protection status) is optional; it is suitable for various voltage levels in the industry: 380Vac, 480Vac, 540Vac; rain cover design, outdoor installation. Support special requirements and function customization.

Environmental applicability：

Operating temperature: -25 to + 60°C ;

Storage temperature: -40 to +70°c ;

Humidity: 0-90% no condensatiorfrost;

Free of corrosive oil gas (if any, please specify)

Technical Parameters:
